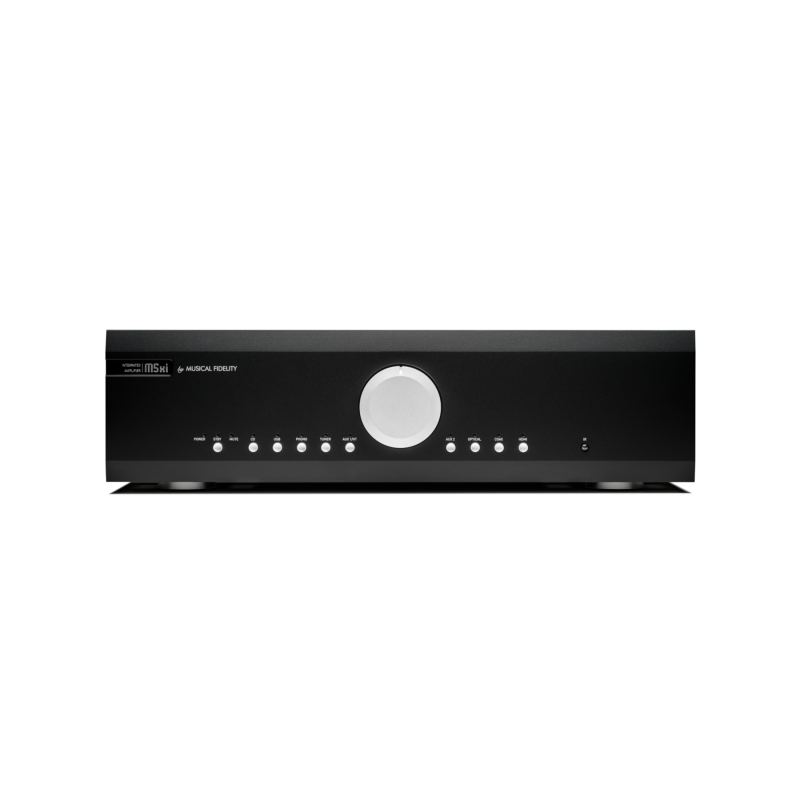

Musical Fidelity M5xi – Power, Control and True High-End Amplification

The Musical Fidelity M5xi is a high-end integrated amplifier designed to deliver power, control and musicality even with demanding loudspeakers. Its Dual Mono power amplifier architecture, inspired by Musical Fidelity's legendary TITAN amplifier, combines a dedicated preamplifier with two independent power amplifier sections within a single chassis.

With 160 watts per channel into 8 ohms and 240 watts per channel into 4 ohms, the M5xi offers substantial dynamic headroom and current delivery to control a wide range of Hi-Fi loudspeakers. Beyond its rated power, its design is engineered to preserve stability, detail and dynamics even when driving more challenging speaker loads.

Architecture Inspired by the Musical Fidelity TITAN

The M5xi power amplifier section uses a Dual Mono configuration derived from the design philosophy developed for the TITAN. Each channel features its own amplification section, providing precise stereo reproduction and consistent power delivery.

Its low-distortion Darlington output stage and optimised circuit design contribute to clean and controlled reproduction, with THD+N below 0.009%.

The preamplifier remains fully analogue and uses a Burr-Brown stepped volume control, providing excellent channel accuracy while preserving fine musical detail even at low listening levels.

Integrated MM and MC Phono Stage

For vinyl enthusiasts, the Musical Fidelity M5xi features an integrated phono stage compatible with both Moving Magnet (MM) and Moving Coil (MC) cartridges.

The phono section benefits from careful shielding, isolation and circuit layout to minimise interference and noise when handling one of the most sensitive signals in any audio system.

This allows a turntable equipped with a wide range of MM or MC cartridges to be connected directly to the amplifier without requiring an external phono preamplifier.

HDMI eARC for TV Integration

Despite its audiophile design, the M5xi integrates easily into a modern Hi-Fi system thanks to its HDMI eARC input.

A compatible television can be connected directly to the amplifier, allowing you to enjoy films, TV series, concerts and television through a genuine stereo system and Hi-Fi loudspeakers without the need for a soundbar.

High-Resolution Digital Inputs

The Musical Fidelity M5xi also features USB-C, optical and coaxial digital inputs, making it easy to connect computers, streamers, televisions and other digital sources.

The digital inputs support PCM playback up to 24-bit/192 kHz, allowing modern digital sources to be easily integrated into a high-quality Hi-Fi system.

The digital and HDMI circuitry is housed on separate boards with dedicated power supplies, helping to minimise the transmission of high-frequency interference to the amplifier's analogue sections.

Home Theatre Bypass

The Home Theatre Bypass function allows the M5xi to be easily integrated into a home cinema system.

In this mode, the preamplifier section can be bypassed, allowing the M5xi to drive the front left and right loudspeakers as part of an AV system.

Pre-Out and Line-Out connections provide additional flexibility for future system expansion.

Robust Construction and Effective Shielding

The metal chassis and aluminium front panel are designed not only for their appearance, but also to increase structural rigidity and provide effective shielding against electromagnetic interference.

The main transformer and power supply are also carefully shielded, reducing the influence of electromagnetic fields on the amplifier's more sensitive audio circuitry.

The result is an integrated amplifier designed to become the heart of a high-performance Hi-Fi system, combining Musical Fidelity's renowned current delivery and musicality with the connectivity required in a modern audio system.

Key Features

• High-end integrated amplifier
• Dual Mono architecture inspired by the Musical Fidelity TITAN
• 160 watts per channel into 8 ohms
• 240 watts per channel into 4 ohms
• 45 A peak-to-peak current delivery
• Fully analogue preamplifier
• Burr-Brown stepped volume control
• MM/MC phono input
• HDMI eARC
• USB-C digital input
• Optical digital input
• Coaxial digital input
• Digital playback up to 24-bit/192 kHz
• 4 analogue RCA inputs
• Home Theatre Bypass
• Pre-Out and Line-Out
• RS232 interface
• Trigger connection
• Remote control included

Technical Specifications

Power output: 160 W/channel into 8 ohms; 240 W/channel into 4 ohms
Continuous power (20 Hz – 20 kHz, 0.09% THD): 140 W/8 ohms; 210 W/4 ohms
Current: 45 A peak-to-peak
THD+N: < 0.009%
Signal-to-noise ratio – line input: >105 dB
Damping factor: 47 (8 ohms)

Analogue inputs: 4 × RCA
Phono: MM and MC
Digital inputs: HDMI eARC, USB-C, optical and coaxial
Digital resolution: up to 24-bit/192 kHz

Outputs: RCA Line-Out and RCA Pre-Out
Control: RS232 and Trigger

Dimensions (W × H × D): 440 × 100 × 405 mm
Weight: 15 kg
Maximum power consumption: 320 W
