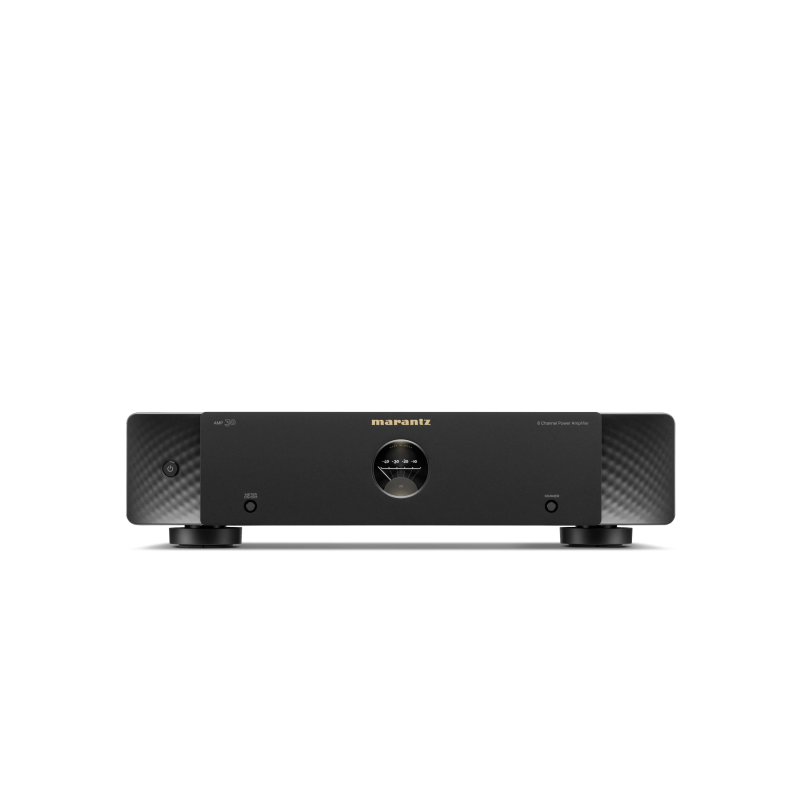

Marantz AMP 30 – 6-Channel Class D Power Amplifier with 200 W per Channel

The Marantz AMP 30 is a high-performance six-channel power amplifier designed for home cinema systems where power, dynamics and configuration flexibility are essential.

Manufactured in Shirakawa, Japan, the AMP 30 combines proprietary Marantz HDAM circuitry with highly efficient, low-distortion Class D amplification, delivering 200 W per channel into 8 ohms and up to 400 W per channel into 4 ohms.

With balanced XLR and RCA inputs for all six channels, Bi-Amp and BTL operating modes and dedicated integration with Marantz AV processors, the AMP 30 is an exceptionally versatile solution for high-performance home cinema systems.

6 Channels of Amplification

The AMP 30 incorporates six independent amplification channels, allowing it to directly power a multichannel system or complement additional power amplifiers in a larger home cinema installation.

Its architecture makes it possible to combine multiple AMP 30 units or use it alongside other Marantz power amplifiers to create systems requiring a larger number of channels.

200 W per Channel into 8 Ohms

In normal operation, the AMP 30 provides 200 W per channel into 8 ohms, delivering substantial dynamic capability for demanding film soundtracks and high-performance loudspeakers.

Marantz specifies 200 W × 2 into 8 ohms at 1 kHz and 0.05% THD, while the amplifier is also rated at 200 W per channel into 8 ohms with five channels driven.

400 W per Channel into 4 Ohms

With 4-ohm loads, specified output increases to 400 W per channel, providing considerable power reserves for more demanding loudspeakers.

This capability makes the AMP 30 particularly suitable for high-performance home cinema systems where the dynamic peaks of film soundtracks can require substantial instantaneous power.

Class D Amplification

The AMP 30 uses a highly efficient, low-distortion Class D amplification architecture.

This technology enables high power output from a relatively compact chassis while reducing thermal demands compared with traditional amplifier architectures delivering similar levels of power.

Marantz HDAM Circuitry

The AMP 30 architecture incorporates proprietary Marantz HDAM circuitry, developed to provide fast response, high resolution and dynamic performance.

Combining HDAM modules with Class D amplification enables Marantz to bring together high power, efficiency and the sonic philosophy associated with the brand.

Balanced XLR Inputs

Each of the six channels features a balanced XLR input, providing a high-quality connection to compatible AV processors and preamplifiers.

Balanced connections are particularly suitable for high-end installations and systems where longer cable runs are required.

RCA Inputs

For maximum compatibility, all six channels also feature unbalanced RCA inputs.

RCA or XLR operation can be selected individually using the switches provided on the rear panel.

Bi-Amp Mode

The AMP 30 supports Bi-Amp operation, allowing two amplification channels to separately drive different sections of a compatible loudspeaker.

This configuration provides an additional optimisation option in systems using loudspeakers designed for bi-amplification.

BTL Mode – 400 W into 8 Ohms

For applications requiring even greater power, selected channel pairs can operate in BTL mode.

In this configuration, the AMP 30 delivers 400 W into 8 ohms, allowing considerably greater power reserves to be dedicated to particularly demanding channels.

Flexible Home Cinema Configuration

The combination of six channels, RCA and XLR inputs and Normal, Bi-Amp and BTL operating modes allows the AMP 30 to be configured according to the specific requirements of each system.

Different channels can, for example, be assigned to front, centre, surround or height loudspeakers, while selected channel pairs can be dedicated to Bi-Amp or BTL operation.

The Natural Partner for the Marantz AV 30

The AMP 30 has been designed to form a particularly coherent combination with the Marantz AV 30, pairing the preamplifier/processor's 11.4-channel processing with powerful external amplification.

For systems requiring additional channels, further AMP 30 units or Marantz AMP 20 and AMP 10 power amplifiers can be added.

Integrated Control with Marantz AV Processors

When connected to a compatible Marantz AV Separate component using the supplied control cable, operation of the AMP 30 can be synchronised with the preamplifier.

Power and selected illumination functions can therefore operate together, providing simpler operation and seamless visual and functional integration between components.

Marantz SPKT-1+ Terminals

All six channels use Marantz SPKT-1+ loudspeaker terminals, designed to provide a robust and secure connection to the loudspeakers.

Frequency Response up to 70 kHz

The specified frequency response extends from 5 Hz to 70 kHz ±3 dB at 1 W into 8 ohms, providing bandwidth far beyond the conventional audible frequency range.

110 dB Signal-to-Noise Ratio

With a 110 dB (IHF-A) signal-to-noise ratio, the AMP 30 is engineered to maintain low noise levels even within high-resolution home cinema systems.

Custom Installation Integration

For integrated systems and professional installations, the AMP 30 provides RS-232, IR Flasher input, Marantz Remote Bus and DC trigger input and output.

These connections facilitate integration with AV processors, automation systems and custom installations.

Front Level Meter

The front panel features the distinctive Marantz circular level meter, integrated into the current design language of the brand's premium components.

The metal front panel and side illumination provide a visual match for the AV 30 and other Marantz components from the same generation.

Made in Shirakawa, Japan

The AMP 30 is manufactured at Marantz's Shirakawa facility in Japan, sharing the construction philosophy and design of the brand's premium AV components.

Key Features

• 6-channel power amplifier
• Class D amplification
• Made in Shirakawa, Japan
• 200 W per channel into 8 ohms
• 400 W per channel into 4 ohms
• 400 W into 8 ohms in BTL mode
• Proprietary Marantz HDAM circuitry
• 6 balanced XLR inputs
• 6 unbalanced RCA inputs
• Individual Balanced / Unbalanced input selection
• Bi-Amp mode
• BTL mode
• 6 Marantz SPKT-1+ loudspeaker terminals
• 5 Hz – 70 kHz frequency response
• 110 dB signal-to-noise ratio
• 29 dB voltage gain
• Front level meter
• Metal front panel
• RS-232
• IR Flasher In
• Marantz Remote Bus
• DC trigger input and output
• Auto Power Off
• Integration with compatible Marantz AV processors

Technical Specifications

Type: Multichannel Power Amplifier
Number of Channels: 6
Amplification Class: Class D
Circuitry: Marantz HDAM

Power Output – Normal / Bi-Amp: 200 W × 2 into 8 ohms, 1 kHz, THD 0.05%
Power Output into 4 Ohms: 400 W × 2 into 4 ohms, 1 kHz, THD 0.7%
5-Channel Power Output: 200 W per channel into 8 ohms, 1 kHz, THD 0.7%
BTL Power Output: 400 W × 2 into 8 ohms, 1 kHz, THD 0.05%

Loudspeaker Impedance – Normal / Bi-Amp: 4 – 16 ohms
Loudspeaker Impedance – BTL: 8 – 16 ohms
Frequency Response: 5 Hz – 70 kHz ±3 dB (1 W, 8 ohms)
Signal-to-Noise Ratio: 110 dB (IHF-A)
Voltage Gain: 29 dB

RCA Input Sensitivity / Impedance: 1.4 V / 47 kohms
XLR Input Sensitivity / Impedance: 2.8 V / 100 kohms

Balanced XLR Inputs: 6
Unbalanced RCA Inputs: 6
XLR / RCA Selection: Yes, via individual selectors
Loudspeaker Terminals: 6 × Marantz SPKT-1+
Bi-Amp: Yes
BTL: Yes

RS-232: Yes
IR Flasher In: Yes
Marantz Remote Bus: Yes
DC Trigger: 1 input / 1 output
Level Meter: Yes
Auto Power Off: Yes

Power Supply: AC 230 V, 50/60 Hz
Power Consumption: 300 W
Standby Consumption: 0.2 W
Weight: Approx. 10 kg
Finish: Black

In the Box

• Marantz AMP 30
• Power cable
• Amp Control cable
• Remote Control cable
• Quick Start Guide
