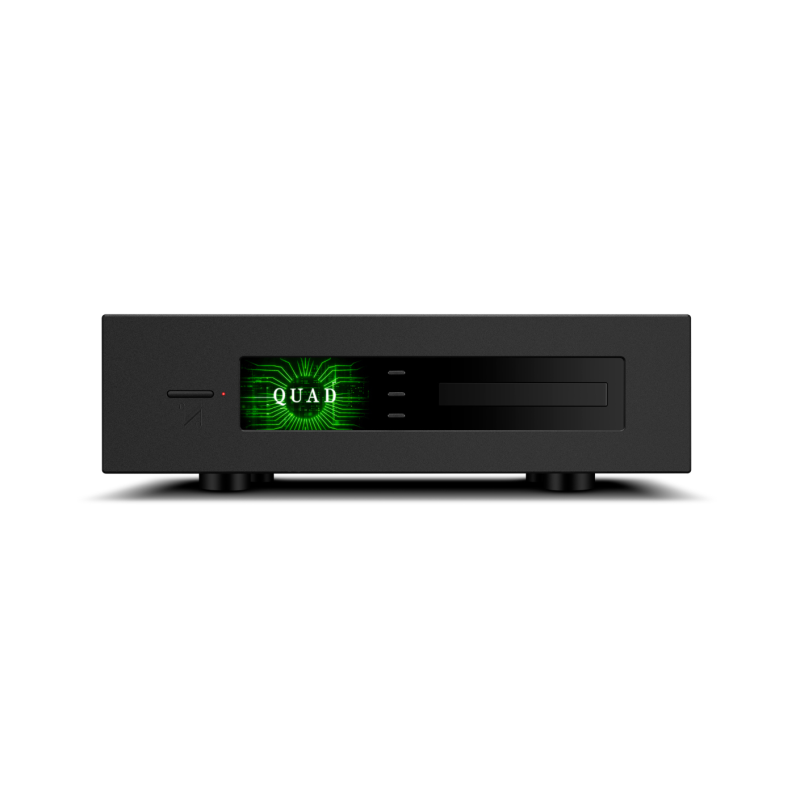

QUAD Platina CDT – High-End CD Transport with Reference-Level Digital Precision

The QUAD Platina CDT is the reference CD transport in the Platina series, developed to combine the physical experience of CD playback with a modern, high-precision digital architecture. Designed as the natural partner for the Platina Integrated and Platina Stream, its engineering is focused on the accurate recovery and transmission of digital data.

With no internal DAC, the Platina CDT dedicates its resources exclusively to digital transport. A custom-developed mechanism, temperature-compensated TCXO clock, carefully optimised power architecture and coaxial and optical digital outputs work together to deliver a stable, low-jitter signal to the DAC.

In addition to conventional CD, CD-R and CD-RW discs, the Platina CDT can also play music files via USB HDD and Data CD, supporting formats including FLAC, WAV, AAC, WMA, MP3 and APE.

A Dedicated Digital Transport

The Platina CDT has deliberately been designed without digital-to-analogue conversion circuitry. Rather than incorporating a DAC, its entire architecture is dedicated to reading, recovering and transmitting digital information.

This approach allows it to be used with the sophisticated DAC inside the QUAD Platina Integrated or with any high-performance external DAC equipped with a compatible digital input.

Separating transport and conversion allows each component to be optimised for a specific function, keeping the Platina CDT focused on reading accuracy and precise signal timing.

Custom-Developed Transport Mechanism

At the heart of the unit is a custom-developed transport mechanism designed to provide smooth operation, stable reading and consistent error correction.

Mechanical stability during playback is particularly important in a high-performance transport, as the system must continuously track the disc surface and accurately recover the digital information.

The mechanism and its associated control system have been developed to perform this task with precision and consistency.

Temperature-Compensated TCXO Clock

One of the key elements of the Platina CDT architecture is its Temperature-Compensated Crystal Oscillator (TCXO).

Conventional oscillators can experience small frequency variations as temperature changes. In a digital audio system, these variations can affect the timing accuracy of the signal.

The TCXO used in the Platina CDT continuously compensates for temperature changes, providing a more stable and consistent clock reference.

Low Jitter and High Signal Integrity

The timing precision provided by the TCXO allows the Platina CDT to maintain low levels of jitter when transmitting digital information to the DAC.

This stability helps preserve the timing integrity of the data, allowing the digital-to-analogue converter to receive a signal that is as precise as possible.

The objective is to provide a presentation characterised by focus, control, spatial definition and natural tonal balance when partnered with a high-quality DAC.

More Than a CD Transport

Although developed around Compact Disc playback, the Platina CDT is not limited to conventional audio CDs.

Compatibility with USB HDD also allows it to operate as a digital source for locally stored music files.

A compatible USB drive can be connected directly to the unit, providing access to a music collection and playback through the same digital architecture used by the transport.

FLAC, WAV, AAC, WMA, MP3 and APE

The QUAD Platina CDT supports a wide selection of file formats including FLAC, WAV, AAC, WMA, MP3 and APE.

Files can be played from compatible USB HDD devices or Data CDs, allowing the unit to operate as a more versatile digital source.

Data CD and USB HDD playback supports sampling rates from 44.1 kHz to 96 kHz.

Compatible with CD, CD-R and CD-RW

For optical media playback, the Platina CDT is compatible with CD, CD-R and CD-RW.

Conventional audio CDs use a 44.1 kHz sampling rate, while Data CDs can contain compatible files with sampling rates up to 96 kHz.

Gapless Playback

The Platina CDT supports Gapless Playback, allowing consecutive tracks to be reproduced without introducing artificial pauses between them.

This feature is particularly important for live albums, classical music, opera and concept recordings where several tracks form one continuous musical sequence.

CD Text

When available on the disc, CD Text allows additional playback information to be displayed on the unit's screen.

Combined with the large front display, this provides a considerably richer user experience than that offered by minimalist CD transports.

Coaxial and Optical Digital Outputs

The Platina CDT provides one coaxial and one optical digital output, making it easy to integrate with different DACs and amplifiers.

The coaxial output has a 75-ohm impedance and a signal amplitude of 500 ±50 mVpp.

The optical connection provides an alternative with electrical isolation between the transport and the digital-to-analogue conversion equipment.

4.3-Inch IPS Display

The front panel incorporates a large 4.3-inch IPS display with 800 × 480-pixel resolution.

The display provides clear information for playback, file navigation and CD Text while sharing the same visual language as the other components in the Platina series.

Platina Design and Construction

The Platina CDT follows the aesthetic philosophy established for the entire Platina series: clean geometry, symmetry, high-quality materials and a contemporary appearance without unnecessary visual elements.

Machined aluminium controls provide precise and satisfying operation, while the minimalist front-panel layout maintains the visual identity of the range.

At 445 mm wide and 10.9 kg in weight, the Platina CDT features substantial construction designed to provide a mechanically stable platform for the transport mechanism.

Seamless Integration with the QUAD Platina Series

The Platina CDT has been designed as part of a complete system alongside the Platina Integrated and Platina Stream.

The Platina CDT handles physical media and local file playback, the Platina Stream adds network and streaming capabilities, while the Platina Integrated provides conversion, control and amplification.

All three components share the same aesthetic language, engineering philosophy and user interface, including a remote control designed to provide a coherent experience throughout the series.

For Listeners Who Still Value Compact Disc

The QUAD Platina CDT demonstrates that a CD collection can remain perfectly at home within a contemporary High-End audio system.

Rather than adding unnecessary functions to the transport, QUAD has concentrated on what matters most in this application: precision mechanics, stable reading, error correction, accurate clocking and low-jitter digital transmission.

With the additional versatility of USB HDD playback, support for files up to 96 kHz, Gapless Playback and a large IPS display, the QUAD Platina CDT combines the tradition of Compact Disc with the requirements of a modern High-End digital source.

Key Features

• Dedicated High-End CD transport
• Part of the reference QUAD Platina series
• No internal DAC, optimised for digital transport
• Custom-developed transport mechanism
• Temperature-compensated TCXO clock
• Architecture designed for low jitter
• Compatible with CD, CD-R and CD-RW
• Data CD compatibility
• USB HDD playback
• Supports FLAC, WAV, AAC, WMA, MP3 and APE
• Playback up to 96 kHz via Data CD and USB HDD
• Gapless Playback
• CD Text support
• USB support for FAT16, FAT32 and exFAT
• Coaxial digital output
• Optical digital output
• 4.3-inch IPS display
• 800 × 480-pixel display resolution
• Machined aluminium controls
• Full remote control included
• Available in Black or Silver

Technical Specifications

Type: CD transport
Compatible discs: CD / CD-R / CD-RW / Data CD
Supported file formats: WAV / MP3 / WMA / AAC / FLAC / APE
Gapless Playback: Yes
CD Text: Yes

USB playback: USB HDD
USB file systems: FAT16 / FAT32 / exFAT
CD/CD-R/CD-RW sampling frequency: 44.1 kHz
Data CD sampling frequency: 44.1-96 kHz
USB HDD sampling frequency: 44.1-96 kHz

Digital outputs: 1 × Coaxial + 1 × Optical
Digital output amplitude: 500 ±50 mVpp
Output impedance: 75 Ω
Frequency response: -0.01 dB (20 Hz – 20 kHz, reference 1 kHz)

Display: 4.3-inch IPS
Resolution: 800 × 480 pixels
Remote control: Yes

Dimensions (W × H × D): 445 × 135 × 310 mm
Net weight: 10.9 kg
Standby power consumption: <0.5 W
Power requirements: 220-240 V / 50-60 Hz
Finishes: Black / Silver
