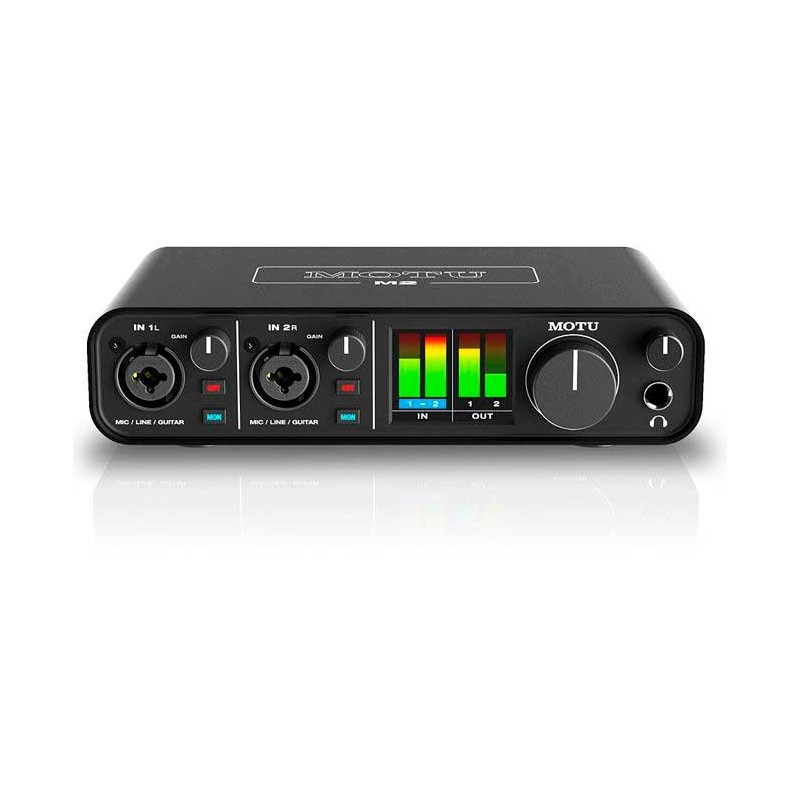

USB AUDIO INTERFACE During the fall of 2019 MOTU announced the launch of its new M2 and M4 USB interfaces, for Mac, Windows and iOS that offer the best audio quality imaginable, the best latency (ultra-low) and the best signal measurement in its category incorporating a fantastic full color LCD screen for this purpose. With two and four channels of audio I/O respectively, the M2 and M4 include individual 48V phantom power on both microphone inputs, mono and stereo (direct) hardware monitoring, and MIDI in and out among other features.




Best-in-class performance


Equipped with the same ESS Sabre32 Ultra™ DAC conversion technology found in audio interfaces costing thousands of euros, the M2 and M4 offer an astonishing 120 dB of dynamic range on their outputs. The ESS converters also control the headphone output, allowing them to compete in playback quality with dedicated audiophile headphone amplifiers costing hundreds of euros. Thanks to the USB drivers designed by MOTU's expert programmers, the M2 and M4 offer an ultra-low send and return latency of 2.5 ms total that will be leading in their category (setting the buffer to 32 samples at 96 kHz). The M2 and M4 are the only audio interfaces in their class with a full-color, high-resolution LCD display with clear, detailed level meters for all their inputs and outputs.


Highlighted Features of M2 and M4

2-in/2-out (M2) and 4-in/4-out (M4) USB audio interfaces with quality sound studio

Best-in-class audio quality thanks to ESS Sabre32 Ultra™ DAC technology

Best-in-class speed (ultra-low latency) for software-based audio processing

Best-in-class metering for all inputs/outputs with a full-color LCD display

2 microphone inputs with combo jack compatible with guitar or Canon jack that also handle signals line / hi-Z (guitars or basses)

Individual preamp gain and 48V phantom power for each input

2 additional balanced 1/4-inch line inputs (only on the M4 model)

Hardware monitoring (direct) for each input

Control by mixing potentiometer to balance the listening of the signals of live inputs and playback from the computer (M4 only)

Measurement of -129 dB EIN (Equivalent Input Noise) on microphone inputs

Balanced 1/4-inch TRS jack outputs (2x for M2, 4x for M4)

Measured 120 dB dynamic range on the 1/4-inch balanced TRS outputs inch

RCA analog outputs (unbalanced) replicate audio from 1/4 inch outputs (2x for M2, 4x for M4)

1x headphone output (powered by ESS converters) with independent volume control

MIDI in/out

Support for sample rates from 44.1 to 192 kHz

Compatible and powered from USB class compliant for plug-and-play operation on Mac (no driver required)

Windows driver with 2.5 ms round trip latency (with 32 sample buffers at 96 kHz)

Mac driver (optional, for 2.5 ms RTL@32/96 kHz and function loopback)

Compatible with iOS (class compliant USB)

Loopback driver for capturing host output, live streaming and podcasting

Powered by USB-C bus (compatible with USB type A) with its own power switch (USB cable included)

Very resistant metal construction.

DAW software included (MOTU Performer Lite 10) and Ableton Live Lite 10)

Over 100 instruments (in Performer Lite)

Over 6 GB of free loops, samples and one-shots included from industry-leading libraries

Kensington anti-theft security slot

Built in the USA

Two-year warranty.
