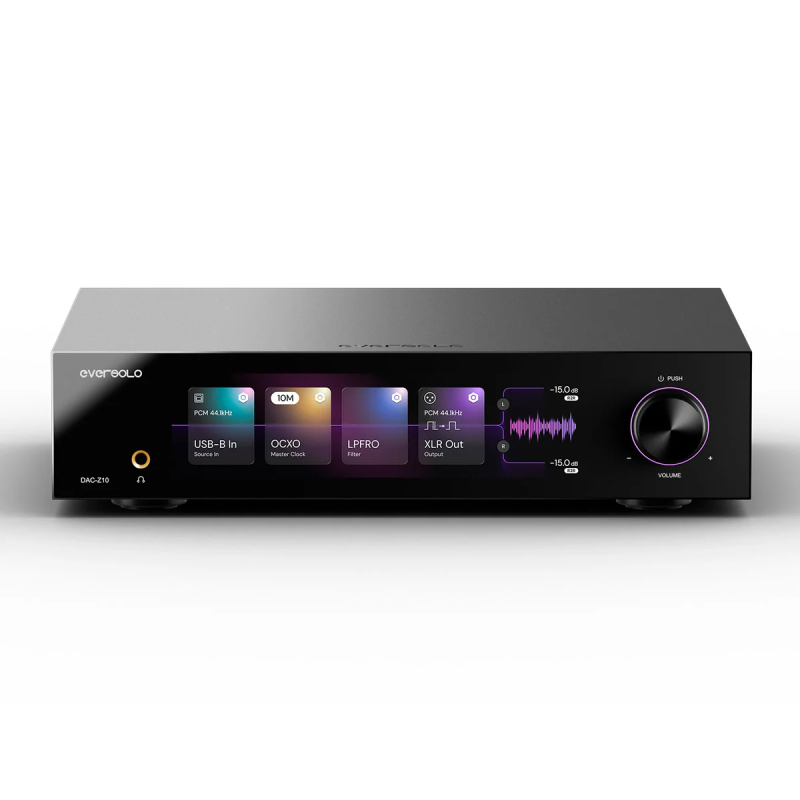

Eversolo DAC-Z10 hi-fi DAC with AK4499, XLR and 8.8” IPS display

The Eversolo DAC-Z10 is a high-performance hi-fi DAC built for demanding systems, combining premium construction (an aluminium alloy chassis) with an 8.8” IPS display for direct control and a modern, professional look in your rack. It’s a complete solution for anyone looking to upgrade digital-to-analog conversion, connect multiple sources, and keep the signal clean and detailed.

At its core, each channel uses AK4191 + AK4499 (left and right), paired with OPA1612 and triple ultra-low noise linear power supplies for stability and extremely low noise. On the digital input side, the DAC-Z10 includes USB‑B (up to DSD512 and PCM 768kHz/32-bit, compatible with Windows 10+, macOS, Android and iOS), IIS (8 mode configurations, up to DSD512/PCM 768kHz/32-bit), AES/EBU, two optical inputs and two coaxial inputs (up to PCM 192kHz/24-bit and DSD64 DoP), plus ARC (up to PCM 192kHz/24-bit) and Bluetooth via a Qualcomm QCC5125 module (BT5.0; SBC/AAC).

On the analog side, it offers XLR (balanced) and RCA inputs, Pre-out XLR/RCA outputs for amplifier integration, and a 6.35mm headphone output. For advanced setups, it also features an external clock input supporting 10M/25M clocks (50Ω or 75Ω). The headphone section is recommended for 16–300Ω headphones (Low Gain 16–32Ω / High Gain 32–300Ω).

In terms of measured performance, the DAC-Z10 delivers reference-grade figures: on XLR it provides 5Vrms and 130dB SNR (A‑wt), with THD+N 0.00008% at 1kHz; on RCA it provides 2.5Vrms and 128dB SNR (A‑wt). These characteristics make it a strong choice if you’re aiming for transparency, dynamics and a well-defined soundstage in a hi-fi system.

At MestresDaMúsica (Viseu, Portugal), we can help you choose the right DAC for your system and optimize connections to streamers, players, TV (via ARC) and amplification. We provide specialist advice and nationwide shipping, so you can achieve a clean integration and the performance your system deserves.

Dimensions: 365 × 310 × 88 mm | Power consumption: 32W | Power: AC 110–240V, 50/60Hz
