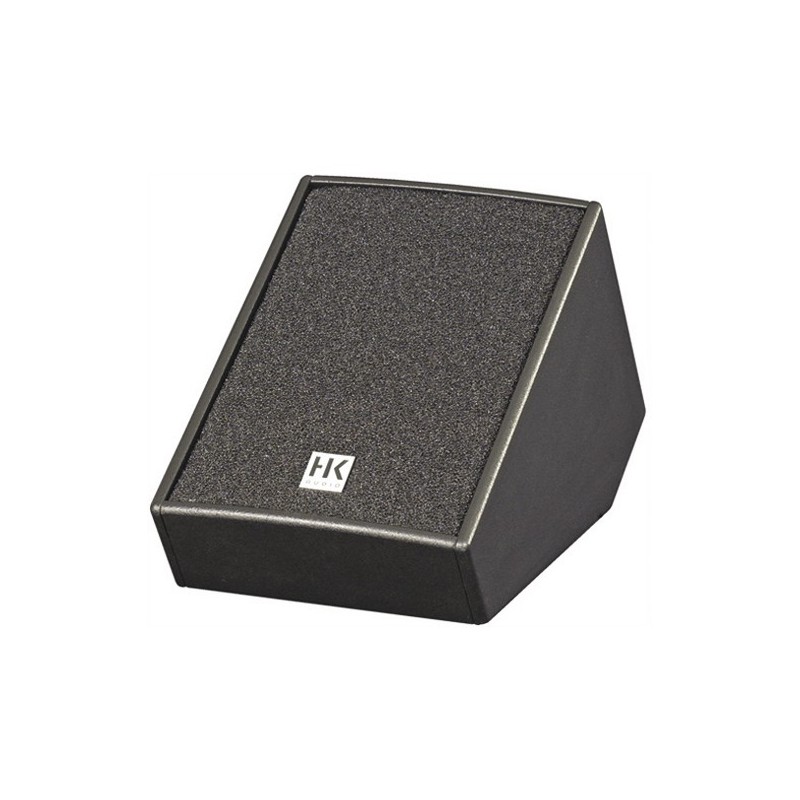

FLOOR MONITOR (PASSIVE) Passive 2-way full range stage monitor. Wedge-shaped MDF acoustic enclosure. Applications: stage monitor. LF: 1 x 12" cone speaker. HF: 1 x 1'' motor. Frequency response: 70Hz–19kHz (+/- 3 dB), 63Hz–19kHz (-10 dB). Power: 400W RMS, 1200W peak. Sensitivity: 104dB 1W@1m. Max. SPL: 128dB @ 10% THD. Coverage angle: 60° x 40° (constant directivity diffuser). Nominal impedance: 8 ohm. Crossover frequency: 2 kHz, 12 dB/oct. passive. Dynamic protection circuit for the HF transducer. Connectors: 2 x Speakon NL4. Attachment points: 1 x handle. Metal grille with black acoustic foam. Dimensions WxHxD: 39 x 55.5 x 38cm. Weight: 16.1kg. Finish: acrylic enamel, black.
