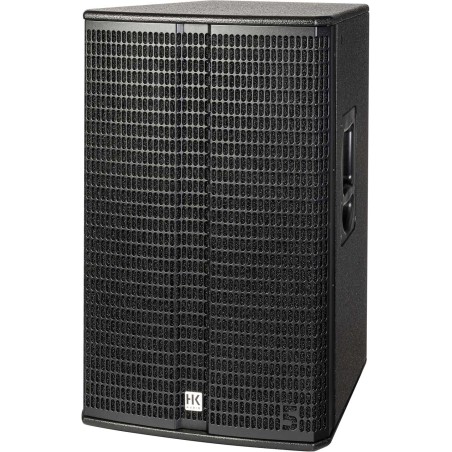

P.A ENCLOSURE (SELF-AMPLIFIED) Compact 2-way self-powered full range system. Low-resonance multilayer MDF/Birch acoustic enclosure with trapezoidal design. Applications: multifunctional, ideal for sound reinforcement, live music installations, DJ sessions, among others. Works as a stand-alone speaker or in combination with other Linear 5 and Linear Sub series systems. It integrates an asymmetrical diffuser designed for optimal sound dispersion. LF: 1 x speaker with 15'' cone and 3'' coil. HF: 1 x 1'' motor and 1.7'' coil. Frequency response: 57 Hz – 12 kHz (+/- 3 dB), 54 Hz – 19 kHz (-10 dB). Amplifier: class D (bi-amplified). Power: 600W(RMS), 1200W(peak). DSP control (Windows/macOS). Max. SPL: 134 dB peak. Coverage angle: 60° x 40° rotatable diffuser. Active crossover frequency: 1.6 kHz FIR X-over, 72 dB/oct. Maximum input level: +20dBu. Connectors: 1 x XLR In, 1 x XLR-Thru, 1 x XLR-DSP Out, 1 x Ethercon RJ45-In. Attachment points: 1 x DuoTilt 3°/7°, 3 x M8, 2 x integrated multi-handles. 2 mm metal grille with black acoustic foam. Dimensions WxHxD: 45 x 68.5 x 42 cm. Weight: 27.6kg. Finish: acrylic enamel, black.
