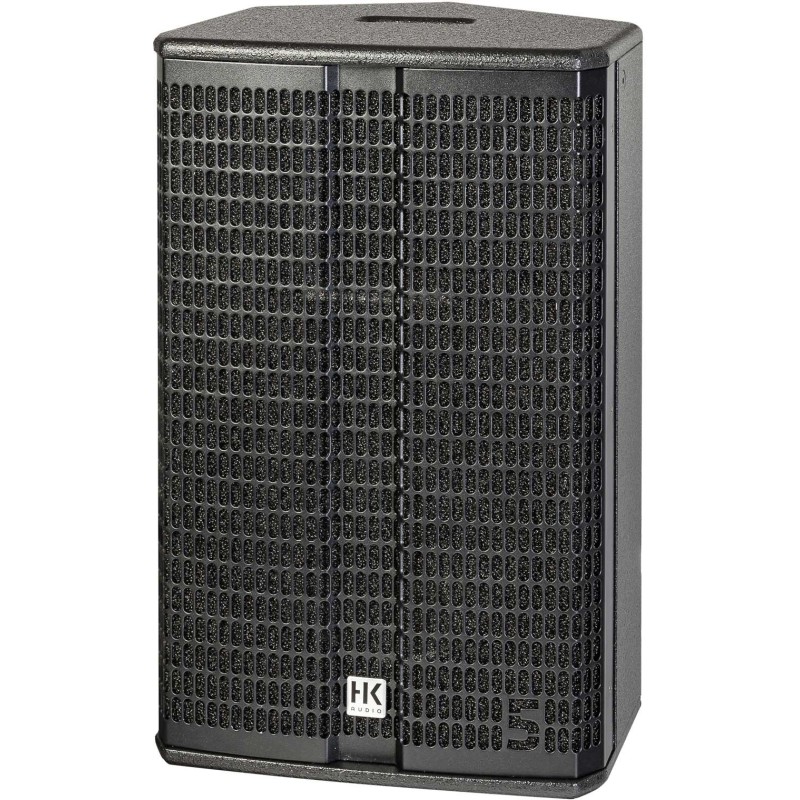

P.A ENCLOSURE (SELF-AMPLIFIED) Compact 2-way self-powered full range system. Low-resonance multi-layer MDF/Birch acoustic enclosure with multi-angle trapezoidal design (vertical and horizontal orientation). Applications: multifunctional, ideal for sound reinforcement, live music installations, stage monitors, DJ sessions, among others. Works as a stand-alone speaker or in combination with other Linear 5 and Linear Sub series systems. LF: 1 x speaker with 12'' cone and 2.5'' coil. HF: 1 x 1'' motor and 1.7'' coil. Frequency response: 73 Hz – 12 kHz (+/- 3 dB), 67 Hz – 19 kHz (-10 dB). Amplifier: class D (bi-amplified). Power: 600W(RMS), 1200W(peak). DSP control (Windows/macOS). Max. SPL: 136 dB peak. Coverage angle: 80° x 60° rotatable diffuser. Active crossover frequency: 1.9 kHz FIR X-over, 72 dB/oct. Maximum input level: +20dBu. Connectors: 1 x XLR combo-In, 1 x XLR-Thru, 1 x XLR-DSP Out, 1 x Ethercon RJ45-In. Monitor angle 31°. Attachment points: 1 x DuoTilt 3°/7°, 3 x M8, 2 x integrated handles. 2 mm metal grille with black acoustic foam. Dimensions WxHxD: 36 x 59 x 30.5 cm. Weight: 17.6kg. Finish: acrylic enamel, black.
